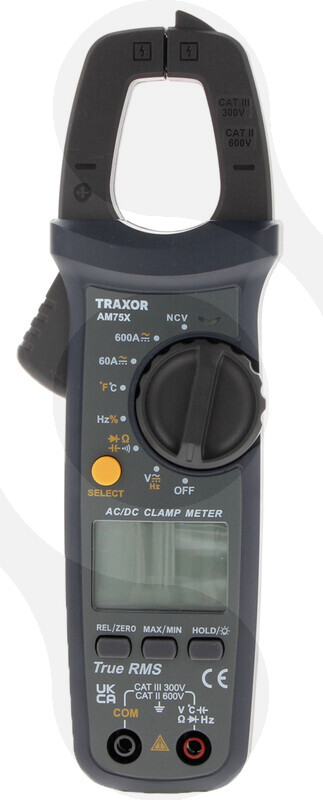

Strommesszange AM75X

Further information

Display:

LCD (37 x 25 mm)

Description:

The digital clamp-on ammeter boasts overload protection, reliability, safety and a high level of accuracy. The device can be used to measure high voltage frequency, temperature, AC/DC current, etc.

• Automatic range selection
• Max. clamp opening 28 mm
• Illuminated LCD display
• Non-contact voltage test
• Temperature measurement
• Continuity test
• Zero mode
• Relative mode
• Data hold
• Diode test
• Auto power off
• Fall protection: 1 m

Included in delivery:

• Test leads
• Temperature measuring lead
• Batteries 2x 1.5 V AAA
• Bag
• Operating instructions

Measuring range:

AC voltage (V) 600 ±(0.8%+5)
DC voltage (V) 600 ±(0.5%+2)
AC current (A) 600 ±(2%+5)
DC current (A) 600 ±(2%+5)
Resistance (Ω) 60MΩ ±(0.8%+2)

Housing material:

Plastic

Safety class:

CAT II 600V, CAT III 300V

Operating temperature (°C):

0 - 40

Weight:

424 g

EAN codes:

4059139507184
